HP ProLiant DL360 Generation 5 (G5)
WEB server compleet geinstalleerd
Apache / MySQL of MariaDB / Dovecot en Postfix / PHP / ISPconfig / enz.

Verdere installatie configuratie in overleg
HP_DL360_G5_02
HP_DL360_G5_04
HP_DL360_G5_03
Beschrijving



HP ProLiant DL360 Generation 5 (G5)

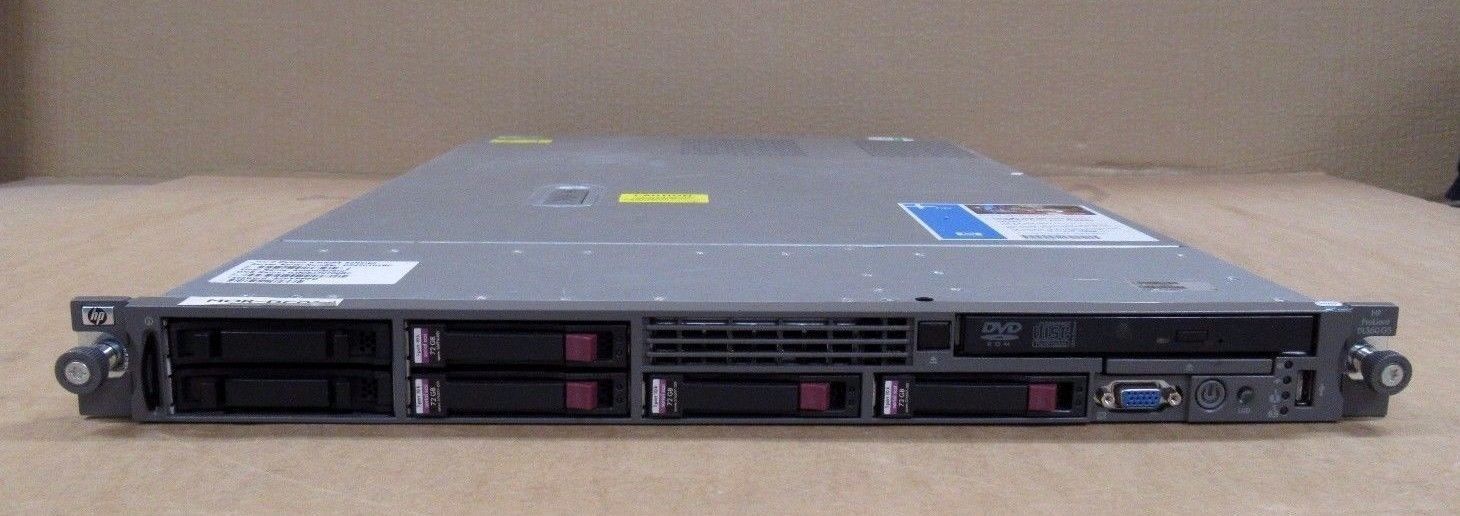

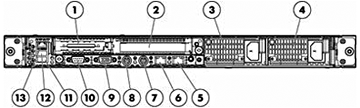

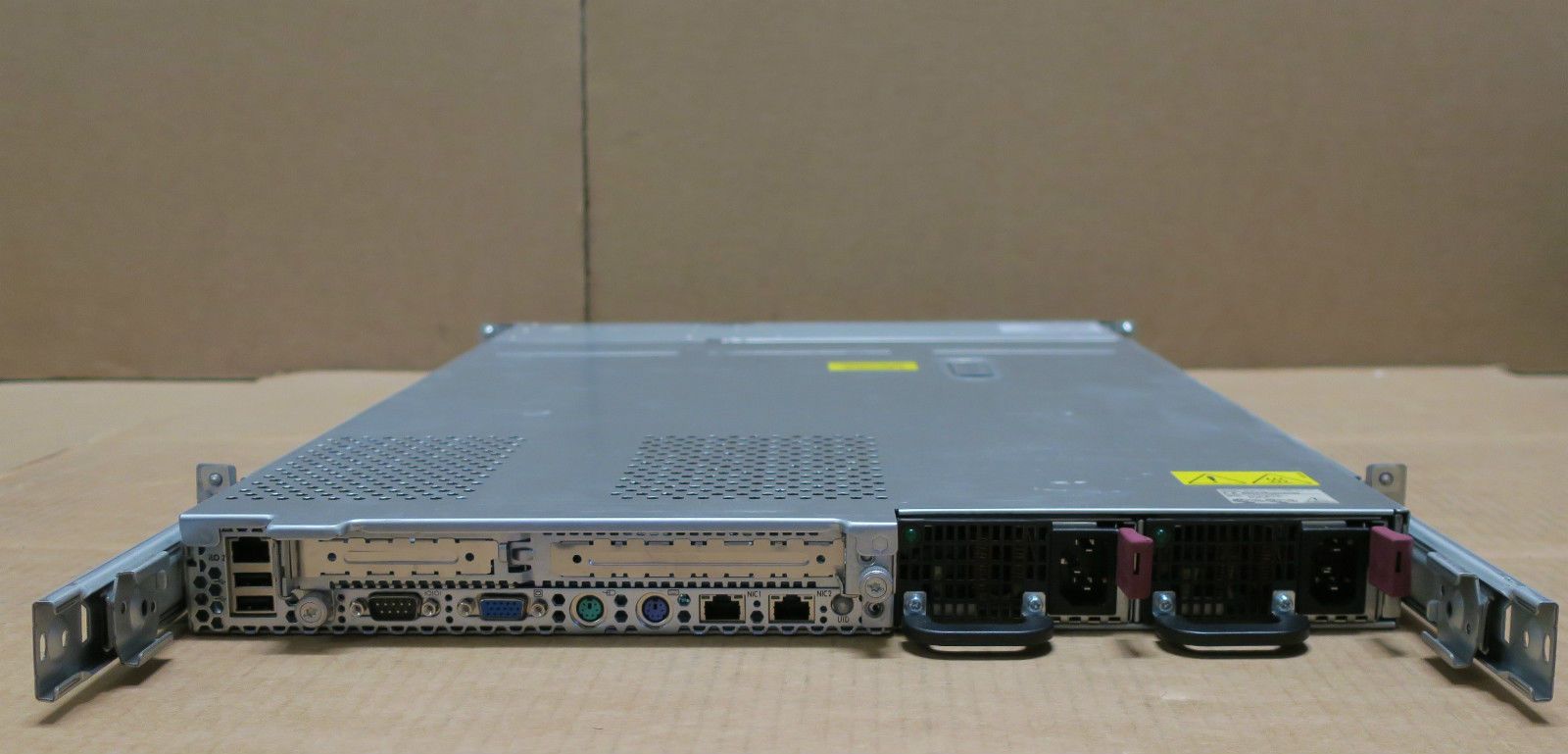

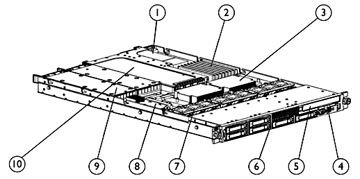

Proliant DL360 G5 Front View: Proliant DL360 G5 Rear View:

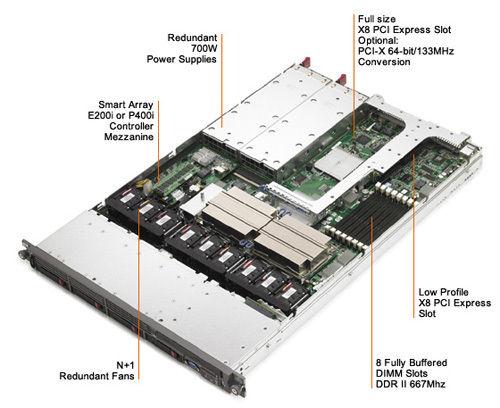

1. Low-profile x8 PCI-Express slot 1. PCI Express expansion slot 1, low-profile, half-length
2. Eight PC2-5300 FB-DIMMs (DDR2 667) slots 2. PCI Express expansion slot 2
3. Up to two Intel Quad-Core or Dual-Core Xeon™ processors 3. Power supply bay 2
4. Slide-out System Insight Display 4. Power supply bay 1
5.
Slimline removable media bay
5.
NIC 2 connector
6. Up to six SAS/SATA hot plug drive bays
6.
NIC 1 connector
7. Removable fans for easy serviceability
7.
Keyboard connector
8. Choice of Smart Array P400i Controller or Smart Array E200i Controller 8. Mouse connector
9. Video connector
9. Redundant Hot Plug Power Supplies (upgradeable option) 10. Serial connector
10. Full length/height x8 PCI-Express Slot (optional PCI-X) 11. USB connector
  12. USB connector
13. iLO 2 NIC connector

DL360 G5 Core Options

HP ProLiant DL360
G5 Unique Options
Quad-Core Processors
Quad-Core Intel® Xeon® Processor X5470 (3.33GHz, 120 Watts, 1333 FSB) 487511-B21 487511-B21
Quad-Core Intel® Xeon® Processor X5460 (3.16GHz, 120 Watts, 1333 FSB) 457929-B21 457929-B21
Quad-Core Intel® Xeon® Processor X5450 (3.00GHz, 120 Watts, 1333 FSB) 462858-B21 462858-B21
Quad-Core Intel® Xeon® Processor E5450 (3.00GHz, 80 Watts, 1333 FSB) 457931-B21 457931-B21
Quad-Core Intel® Xeon® Processor E5440 (2.83GHz, 80 Watts, 1333 FSB) 457933-B21 457933-B21
Quad-Core Intel® Xeon® Processor E5430 (2.66GHz, 80 Watts, 1333 FSB) 457935-B21 457935-B21
Quad-Core Intel® Xeon® Processor L5430 (2.66GHz, 50 Watts, 1333 FSB) 487513-B21 487513-B21
Quad-Core Intel® Xeon® Processor E5420 (2.50GHz, 80 Watts, 1333 FSB) 457937-B21 457937-B21
Quad-Core Intel® Xeon® Processor L5420 (2.50GHz, 50 Watts, 1333 FSB) 457943-B21 457943-B21
Quad-Core Intel® Xeon® Processor E5410 (2.33GHz, 80 Watts, 1333 FSB) 457939-B21 457939-B21
Quad-Core Intel® Xeon® Processor L5410 (2.33GHz, 50 Watts, 1333 FSB) 457945-B21 457945-B21
Quad-Core Intel® Xeon® Processor E5405 (2.00GHz, 80 Watts, 1333 FSB) 457941-B21 457941-B21
Quad-Core Intel® Xeon® Processor E5345 (2.33 GHz, 80 Watts, 1333 FSB) 435954-B21 435954-B21
Quad-Core Intel® Xeon® Processor E5335 (2.00 GHz, 80 Watts, 1333 FSB) 435952-B21 435952-B21
Quad-Core Intel® Xeon® Processor E5310 (1.60 GHz, 80 Watts, 1066 FSB) 438314-B21 438314-B21
Dual-Core Processors
Dual-Core Intel® Xeon® Processor X5260 (3.33 GHz, 80 Watts, 1333 FSB) 457949-B21 457949-B21
Dual-Core Intel® Xeon® Processor L5240 (3.00 GHz, 40 Watts, 1333 FSB) 457947-B21 457947-B21
Dual-Core Intel® Xeon® Processor E5205 (1.86 GHz, 50 Watts, 1066 FSB) 460497-B21 460497-B21
PCI-X Riser option
NOTE: To convert full-length PCI-Express slot to PCI-X slot.

Memory

1 GB FBD PC2-5300 2 x 512 MB Single Rank Kit
2 GB FBD PC2-5300 2 x 1 GB Dual Rank Kit
2 GB FBD PC2-5300 2 x 1 GB Low Power Single Rank Kit
4 GB FBD PC2-5300 2 x 2 GB Dual Rank Kit
4 GB FBD PC2-5300 2 x 2 GB Low Power Dual Rank Kit
8 GB FBD PC2-5300 2 x 4 GB Dual Rank Kit
8 GB FBD PC2-5300 2 x 4 GB Low Power Dual Rank Kit
16 GB FBD PC2-5300 2 x 8 GB Dual Rank Kit 413015-B21 413015-B21
64 GB FBD PC2-5300 8 x 8 GB Dual Rank Kit 495604-B21 495604-B21
NOTE: Memory Option Kits described as LP include Low Power DIMMs. For more information on ProLiant Energy Efficient Features, please visit:
http://h18004.www1.hp.com/products/servers/platforms/energyefficient/


Diskette Drive Slimline Ejectable Floppy drive

Optical Drives Slimline CD-RW/DVD-ROM Combo Option Kit
Slimline DVD-ROM Drive (8X/24X) Option Kit
HP DVD+R/RW 8X Slim
Slimline CD-ROM Drive 24X



Hard Drives NOTE: The components of a storage subsystem (e.g. the drive, the HBA/controller, firmware, and the server backplane) should operate at the same data transfer rate or the system bandwidth will be negotiated down to an acceptable level for all components.
NOTE: Hard drives have either a one year or three year warranty; refer to the specific hard drive QuickSpecs for details.

SAS Hot Plug SFF Enterprise (ENT) Drives
HP 900GB 6G SAS 10K SFF DP ENT HDD 619291-B21 619291-B21
HP 600GB 6G SAS 10K SFF DP ENT
